dB Calculator
2.3
The dBCalculator software comprises five independent calculation tools:
dBm Calculator:
This tools helps to add and subtract an arbitrary number of power levels expressed in units of dBm and watt.

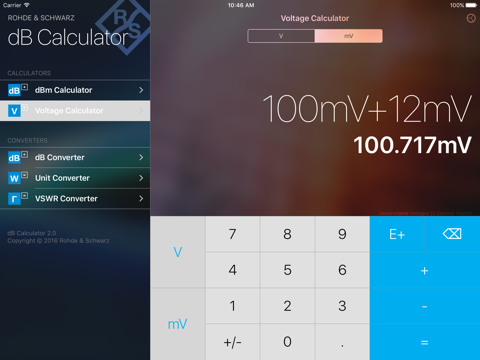

Voltage Calculator:
This tools helps to add and subtract correlated and uncorrelated voltage levels.

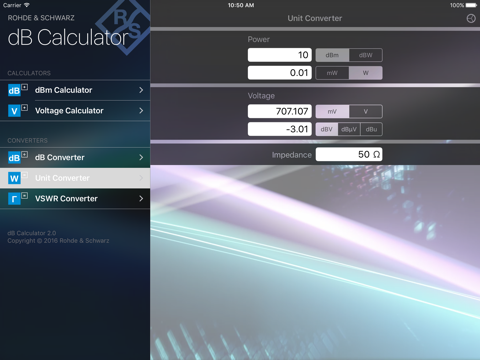

Unit Converter:
This tool calculates for an entry using a unit such as dBm, dBW, mW, W, mV, V, dBV, dBµV and dBu the corresponding values for all other units, for individual impedance values.

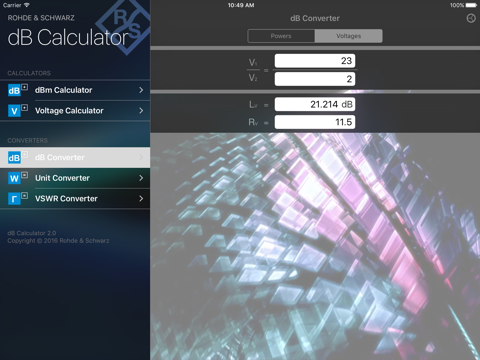

dB Converter:
This tool converts linear power and voltage ratios to dB and vice versa.

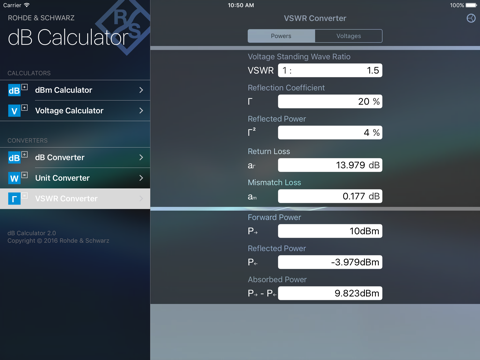

VSWR Converter:
This tool converts reflection quantities such as Voltage Standing Wave Ratio VSWR, reflection coefficient, reflected power, return loss and mismatch loss.
PLEASE NOTE: Calculations based on correlated vs uncorrelated levels yield very different results. If you see an unexpected result, please verify the uncorrelated/correlated setting of this app first!
The dBCalculator software is based on the application note
1GP77: R&S dBCalculator
by Rohde & Schwarz GmbH & Co. KG
www.rohde-schwarz.com/appnote/1GP77
dBm Calculator:
This tools helps to add and subtract an arbitrary number of power levels expressed in units of dBm and watt.
Voltage Calculator:
This tools helps to add and subtract correlated and uncorrelated voltage levels.
Unit Converter:
This tool calculates for an entry using a unit such as dBm, dBW, mW, W, mV, V, dBV, dBµV and dBu the corresponding values for all other units, for individual impedance values.
dB Converter:
This tool converts linear power and voltage ratios to dB and vice versa.
VSWR Converter:
This tool converts reflection quantities such as Voltage Standing Wave Ratio VSWR, reflection coefficient, reflected power, return loss and mismatch loss.
PLEASE NOTE: Calculations based on correlated vs uncorrelated levels yield very different results. If you see an unexpected result, please verify the uncorrelated/correlated setting of this app first!
The dBCalculator software is based on the application note
1GP77: R&S dBCalculator
by Rohde & Schwarz GmbH & Co. KG
www.rohde-schwarz.com/appnote/1GP77
