Section Properties - Mechanical & Civil Engineers 2.7

Section Properties calculates area moment of inertia, section modulus, radius of gyration, extreme point and area for the follow sections:

Square at Center
Square Rotated 90 degrees
Square at Edge
Square Tube at Center
Square Tube Rotated 45 Degrees
Rectangle at Center
Rectangle at Edge
Rectangle at Corners
Rectangle at a specified Angle
Rectangle Tube at Center
Solid Round at Center
Tube/Pipe at Center
Half Round at Center
Half Tube/Pipe at Center
Hexagon at Center
Hexagon at Corners
Octagon at Center
Triangle at Center
Triangle at Edge
Trapezoid at Center

The app also calculates the Mass Moment of Inertia for the following objects:

Hollow Shaft Cylinder
Rectangular Plane
Rectangular Plate at Edge

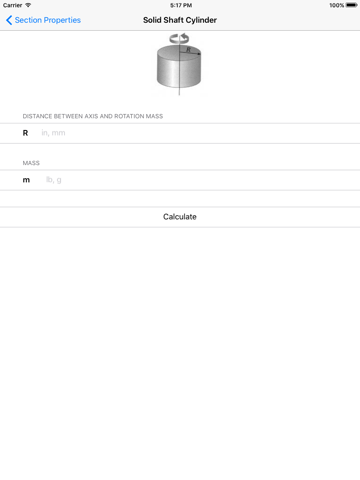

Solid Shaft Cylinder
Solid Sphere
Thin Walled Sphere
Thin Walled Cylinder

Please send us any comments, suggestions or questions through our website.
